Commercial Refrigerator Dimensions: 8 Measurements to Take Before You Buy
Will the refrigerator actually fit into your kitchen? And more importantly, will you be able to get it through the door, around the corners, and into the space where you plan to install it?
These are easy questions to overlook when shopping for a commercial reach-in refrigerator. A unit may look like it fits based on its advertised width, but the actual installation can depend on much more than the number on the product page.
Common Commercial Reach-In Refrigerator Widths
There is no single universal size for every commercial refrigerator. Dimensions vary by manufacturer, model, capacity, and configuration. As a reference, Wilprep's current reach-in refrigerator lineup includes several common configurations:
| Configuration | Example Wilprep Width | Current Listed Capacity Range |
|---|---|---|
| Single-Door | ~ 29 in. | ~ 17.6–23.3 cu. ft. |
| Two-Door | ~ 54 in. | ~ 35.5–47 cu. ft. |
| Three-Door | ~ 81 in. | ~ 54.9–72.8 cu. ft. |

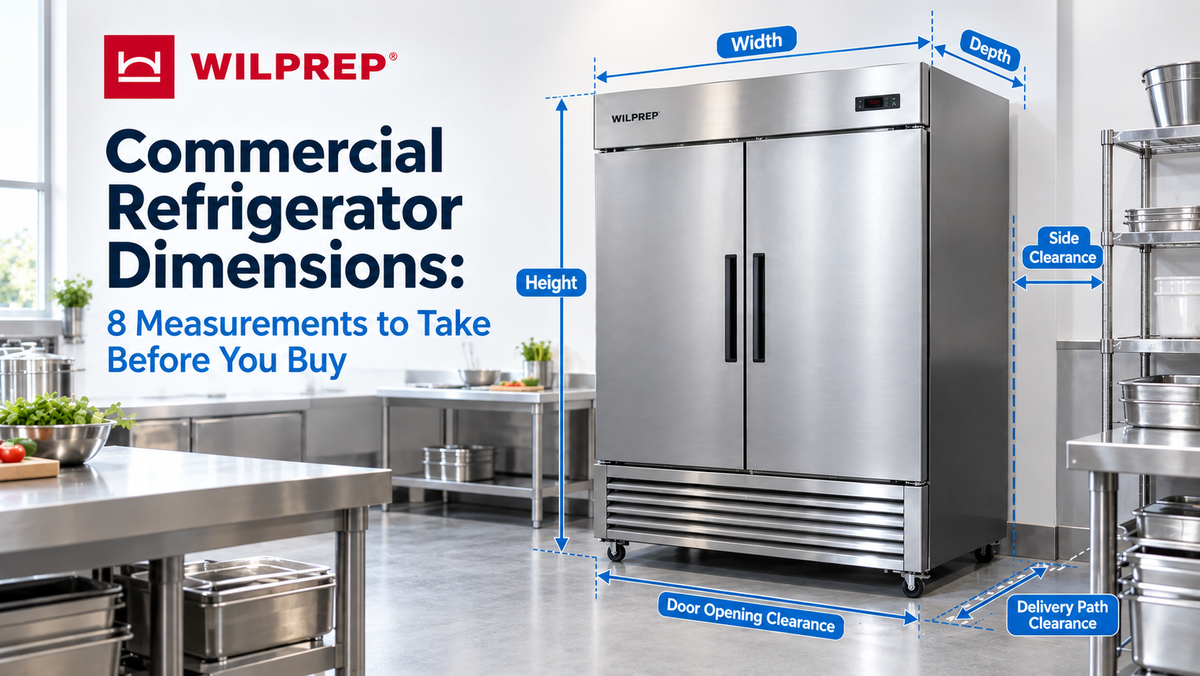

8 Essential Measurements to Take Before Buying
1. Measure the Available Width
Start with horizontal space. Measure the full width of the installation area and check for potential obstructions:
- Walls, columns, or door frames
- Adjacent equipment & countertops
- Shelving, pipes, or fixed fixtures
2. Measure Depth—Not Just Width
A refrigerator may fit between two walls based on width but still extend farther into the kitchen than expected.
- Confirm if handles and rear components are included in published dimensions.
- Several current Wilprep reach-in models are 25.5 inches deep, while others are deeper.
- Factor in required rear clearance for ventilation and power connections.
3. Measure the Available Height
Measure from the floor to the lowest overhead obstruction:
- Ceiling height & overhead cabinets
- Shelves, pipes, and lighting fixtures
- Fire suppression equipment
Several current Wilprep models are listed at 82.5 inches high. Never assume a tiny margin of extra space is enough!
4. Check Door Swing and Working Space
A refrigerator can fit its footprint and still be unusable if the doors can't open properly. Ensure doors open without:
- Hitting a wall or another piece of equipment
- Blocking crucial walkways or prep areas
- Preventing staff from comfortably reaching shelves
5. Measure the Kitchen's Traffic Path
Consider employee workflow. A unit placed next to a prep station might fit, but opening the door could block someone carrying food or opening an oven. Ensure high-frequency access doesn't create bottlenecks.
6. Measure the Delivery Route
The refrigerator must reach your kitchen before it can be installed! Measure every point along the delivery path:
- Exterior and interior doorways
- Hallways and tight corners
- Elevators, loading areas, and floor level changes
Protective packaging and pallets add extra size. Ask the seller or freight carrier for the packaged shipping dimensions and compare them with the narrowest point along the entire route.
7. Check Required Airflow Clearance
Commercial units require ventilation to run efficiently.
- Several current Wilprep reach-in models specify 2–3 inches of clearance on all sides.
- Always calculate:
Refrigerator Dimensions + Required Clearance
8. Check Electrical Requirements
Do not assume every unit uses a standard setup. Current Wilprep 29-inch and 54-inch reach-in models typically list:
- Voltage/Amperage: 115V / 6A
- Plug Type: NEMA 5-15P plug
Always verify that your outlet and circuit match the unit's exact specifications before ordering.
Choosing the Right Configuration & Door Type
1. Refrigerator Size Configurations
- 1-Door (~29 in. wide): Compact and space-saving. Ideal for kitchens with limited wall space needing dedicated storage.
- 2-Door (~54 in. wide): Practical balance of storage capacity and floor space. Fits high daily demand in most commercial kitchens.
- 3-Door (~81 in. wide): Maximum storage (~55–73 cu. ft.). Requires significant continuous wall space and a wide delivery route.
2. Solid Door vs. Glass Door
- Solid Door: Best for back-of-house storage where maximum insulation efficiency is prioritized and staff already know what to retrieve.
- Glass Door: Best for high-visibility needs, allowing staff to quickly locate ingredients without opening doors and losing cold air.
Commercial Refrigerator Measurement Checklist
- Available installation width
- Available installation depth
- Available installation height
- Door-opening working space
- Kitchen traffic path clearance
- Delivery route width & height
- Doorways and hallway clearances
- Narrowest point along the delivery route
- Required ventilation/airflow clearance
- Electrical outlet and circuit compatibility
- Packaged shipping dimensions
- Exact product dimensions (from manufacturer spec sheet)
Frequently Asked Questions (FAQ)
Q: What is the standard size of a commercial refrigerator?
A: There isn't one universal size. Current Wilprep reach-in models commonly feature widths of 29 in. (1-door), 54 in. (2-door), and 81 in. (3-door). Height, depth, and capacity vary by model.
Q: How much space does a 29-inch commercial refrigerator need?
A: More than 29 inches. For example, a Wilprep 29" unit (29" W × 25.5" D × 82.5" H) requires an extra 2–3 inches of clearance on all sides for airflow.
Q: What size doorway do I need for delivery?
A: It depends on the unit's exterior dimensions plus its protective packaging. Always compare the packaged shipping dimensions against the narrowest door or hallway along your delivery route.
Final Takeaway
A commercial refrigerator must fit three distinct spaces:
- The installation space
- The working space around it
- The delivery route into the building
The best-fitting refrigerator is not necessarily the smallest one—it's the one that provides the capacity you need while seamlessly fitting your kitchen layout, workflow, and delivery path.
